A switchable privacy-glass wall can look like a standard glazed partition until the electrical scope is left until the final site walk. This glass wall electrification guide is for project teams that need a dependable path from design intent to a commissioned, serviceable installation. The central requirement is straightforward: treat power, controls, and wire routing as part of the glass-wall system, not as an accessory to be solved after fabrication.
For commercial interiors, the visible glass is only one part of the assembly. The project must also account for the PDLC privacy layer, busbar orientation, lead exits, transformers or controllers, switching interface, access strategy, low-voltage routing, and final testing. A clean result depends on coordinating each of those items before the wall is released.
Start With the Correct Glass Path
Electrification begins with a product-path decision. Existing interior glass and new fabricated glass are not interchangeable conditions.
Retrofit adhesive PDLC smart film is designed for suitable existing interior glazing. It is applied to the glass after the primary partition system is in place, with electrical leads managed around the perimeter. This path can reduce disruption where the existing glass is sound, accessible, and appropriate for the intended privacy application. It does not turn every installed glass wall into an automatic retrofit candidate. Frame geometry, edge exposure, nearby trim, glass condition, access to power, and the owner’s tolerance for visible transition details all matter.
Fabricated laminated smart glass is the serious execution path for new construction, replacement glass, wet environments, exterior-facing applications, and assemblies where the privacy layer must be protected inside the glass build-up. In this condition, the PDLC layer, electrical connections, edge treatment, and glass make-up are coordinated during fabrication. The glazing system must accommodate the specified glass thickness and protect the exiting leads without pinching, cutting, or creating a water path.
The electrification plan follows the product path. Retrofit work often requires more careful field routing and finish coordination. Fabricated assemblies require earlier fabrication-level decisions. Either can perform well when specified for the actual condition rather than selected on first cost alone.
Define Zones Before Sizing Power
A common estimating error is to treat an entire elevation as one electrical load. The better approach is to establish controllable zones based on how people use the space.
A conference room may use one zone per room, or separate zones for sidelites, doors, and larger partition runs. A healthcare consult room may require independent switching at each room for privacy control. Hospitality applications may favor grouped control by suite, treatment area, or operable partition line. The right approach depends on user behavior, available control locations, and whether occupants need localized privacy rather than whole-floor switching.
Each zone needs a defined square footage, glass or film configuration, operating voltage, and controller capacity. Smart-glass power supplies should not be selected by rough wall area alone. Confirm the manufacturer’s load data, apply the appropriate capacity allowance, and determine whether the proposed transformer supports the number of panels or film sections in that zone.
PDLC privacy glass is typically clear when energized and opaque when power is removed. That operational logic should be discussed early with the owner, especially where privacy during a power interruption is desirable. The control sequence may be simple, but it is still an owner decision with operational consequences.
Locate Power Supplies Where They Can Be Reached
Power supplies, transformers, and control components need a real home in the project. Above-ceiling placement may be practical, but only where there is code-compliant access and a credible maintenance path. Burying a component above a hard lid, behind inaccessible millwork, or inside a sealed wall cavity creates an avoidable service problem.
For each electrical zone, the drawings should identify the equipment location, electrical feed, low-voltage route, disconnecting means where required, and access-panel responsibility. The electrical contractor needs more than a note that says “provide power to smart glass.” They need a point of connection, equipment schedule, load information, pathway expectations, and coordination with the glazier or smart-glass installer.
Equipment location also affects performance. Excessive low-voltage lead length can create voltage drop, complicate troubleshooting, and introduce extra splices. Place the power supply close enough to the served zone to maintain the specified electrical performance while keeping it accessible and protected. The approved shop drawings should establish the allowable routing plan rather than leaving lead extensions to field improvisation.

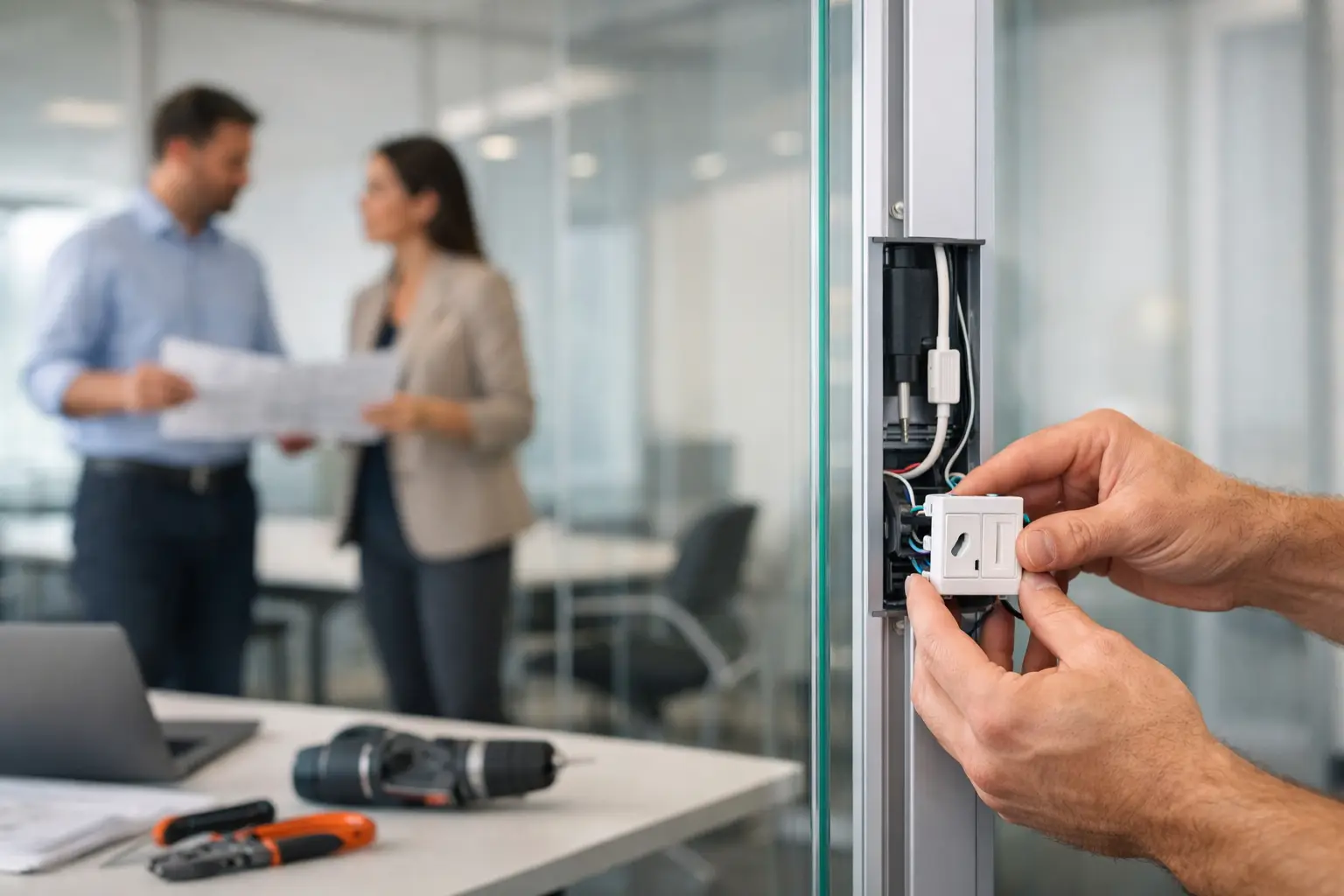

Coordinate Wire Exits With the Glazing System
The glass edge is not a casual place to route electrical leads. Wire exits must align with the frame, channel, pocket, or adjacent finish condition. The team should confirm where the lead exits each panel, how it passes through the glazing system, how it transitions to the low-voltage pathway, and how it remains concealed without being crushed.
For framed systems, mullions and head channels may provide a practical route, subject to the system’s geometry and installation method. For butt-glazed walls, head conditions, perimeter channels, or adjacent closures often carry the coordination burden. In either case, the glass-wall dealer, glazier, electrician, and drywall or millwork trades should review the detail together. A drawing can appear resolved until the actual channel depth, setting block location, or cover cap is considered.
Do not assume a factory lead can be cut, extended, or redirected at will. Connection methods, wire type, splice locations, and strain relief must follow the approved system requirements. This is reference discipline, not unnecessary caution. Improvised modifications are a frequent source of intermittent operation, visible wiring, damaged edge connections, and warranty disputes.
Select Controls Around the User Experience
Switchable glass can be controlled through wall switches, key switches, occupancy or vacancy logic, building automation interfaces, touch panels, or remote-control systems. The control method should be chosen by operational need, not by novelty.
A simple local wall switch is often the most reliable choice for a single conference room or private office. Healthcare and hospitality projects may require controls that staff can operate consistently without training. Larger commercial environments may benefit from centralized control or integration with an AV and building-management strategy, but that introduces additional responsibility for interface definition, programming, and commissioning.
Specify the control sequence in plain language. Identify what happens at normal power-up, whether individual zones can be overridden, who has authority to control each area, and whether the glass should respond to occupancy, scheduling, or a privacy button. If the architect expects one visual result and the owner expects another, the problem will surface at turnover.
Put Electrification on the Submittal Agenda
The most effective projects do not wait for installation to verify electrical coordination. During submittal review, confirm the panel schedule, dimensions, zone map, lead-exit locations, glass make-up, control diagram, transformer schedule, wiring diagram, and installation sequence.
A focused pre-installation meeting should resolve at least five issues:
- Which trade provides line-voltage power and which trade completes the low-voltage smart-glass connections.
- Where controllers and power supplies will be located, accessed, labeled, and protected.
- How leads will pass through frames, ceilings, finishes, or millwork without damage.
- When glass or film installation occurs relative to glazing, final paint, ceiling closure, and finish trim.
- What testing is required before turnover and who records the results.
This level of coordination is especially valuable when the project includes multiple room types. A single detail rarely serves a framed conference front, a butt-glazed executive enclosure, a clinic consult room, and a shower or wet-area assembly. Reuse the design logic where possible, but verify each condition independently.
Installation and Commissioning Are Separate Milestones
Installed glass is not necessarily commissioned glass. Before final handover, every zone should be energized, switched repeatedly, and visually inspected from both sides. The team should verify uniform privacy appearance, expected clear-state performance, correct zone behavior, absence of exposed or stressed wiring, secure equipment mounting, and labeled control points.
Testing should also cover the conditions that affect the owner. Operate the system from each intended control location. Confirm that grouped zones and local overrides behave as documented. If automation or AV integration is included, test it with the responsible trade present rather than assuming that a dry-contact connection is equivalent to a finished user experience.
Document the final equipment locations, circuit information, zone map, control logic, and service contacts in the closeout package. This is particularly important for facilities teams who may need to locate a transformer years after the original build-out. Smartglass USA approaches qualified commercial projects with this same emphasis on specification clarity and capable installation channels because the product must remain serviceable after the project photographs are taken.
Avoid the Decisions That Create Rework
Most electrification failures are coordination failures. Power is omitted from the electrical scope, a ceiling closes before leads are routed, a transformer is placed without access, or a glass panel is fabricated with the wrong wire exit. None of these are difficult technical problems when identified early. They become expensive when discovered after finished surfaces, furniture, and occupancy are in place.
The practical question is not simply whether a glass wall can be electrified. It is whether the project team has defined a serviceable electrical architecture that matches the selected glass path, partition system, controls, and ownership expectations. When those decisions are documented before fabrication and field installation, switchable privacy glass becomes a disciplined architectural system rather than a late-stage coordination risk.
The strongest next step is to review the actual wall details, room uses, and electrical pathways together before the scope is priced or released. That conversation protects the design intent and gives every trade a clearer role in delivering privacy on demand.
